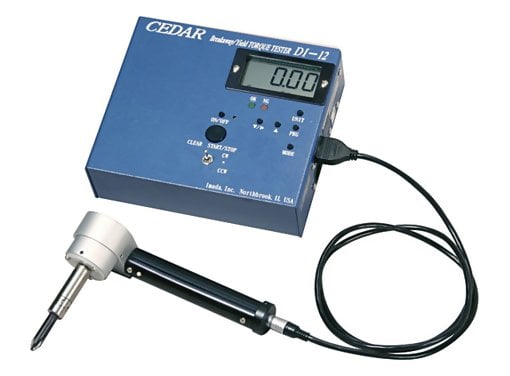

Imada Cedar DI-12-SL Automatic Breakaway Torque Tester
Imada Cedar DI-12-SL Automatic Breakaway Torque Tester

Imada Cedar DI-12-SL Automatic Breakaway Torque Tester
Selectable units: lbf-in, kgf-cm, N-m. ozf-in units avaiable
Peak, Real Time and Breakaway/Yield measuring modes (selectable)

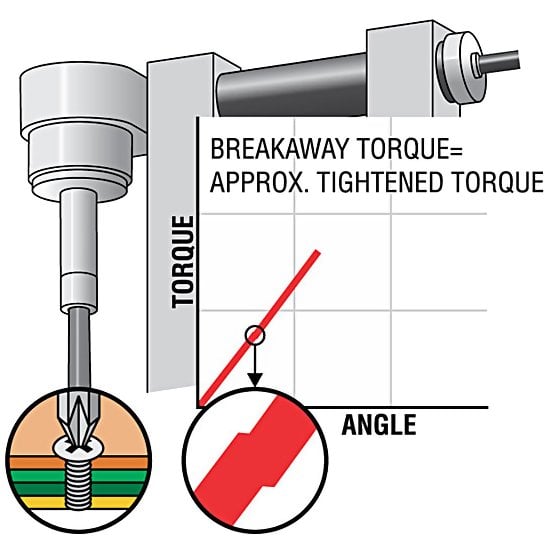

The Imada Cedar DI-12-SL Automatic Breakaway Torque Tester is designed to find the actual yield tightening torque value for specific thread joints which consist of a variety of thread types, multi-layered material, hole sizes, etc.Torque controlled power tools are set to apply consistent torque, but fasteners are not necessarily tightened to that value if the tools are not calibrated. A breakaway test is used to verify the actual tightened torque of a bolt. Breakaway torque tests require a skilled, experienced operator to sense when the bolt begins to breakaway. DI-12 automates this complex operation. Once breakaway torque is measured, power drivers can be reset to the proper tightening torque.DI-12 Automatic Breakaway Torque Tester drives the test piece at consistent speed and detects breakaway torque without overtorquing pretightened fasteners
