Mark-10 MR05-500 Push/Pull Sensor Series 5, 500 lbs Capacity
$875.00
Loading...
Loading product info...
Similar Products to Consider
Product Description
Measures push and pull force
500 lbs capacity
500 lbs capacity

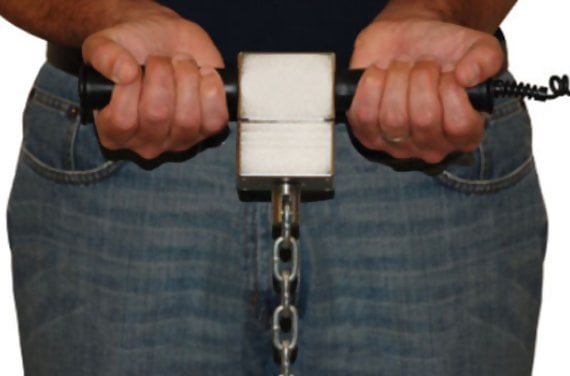

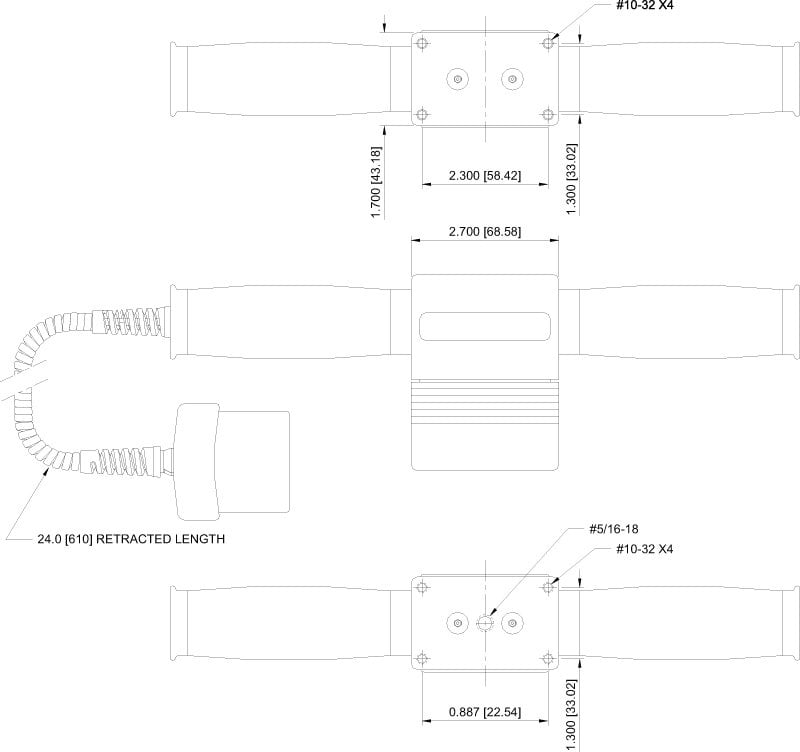

Mark-10 R05 Push/Pull Sensor fully enclosed smart sensors are designed for pull / push measurements. Useful in ergonomics testing, workplace safety testing, and general lifting or tension / compression requirements. Threaded holes are supplied to accommodate various mounting configurations and attachments. For up to 500 lbF (2,500 N).
Features

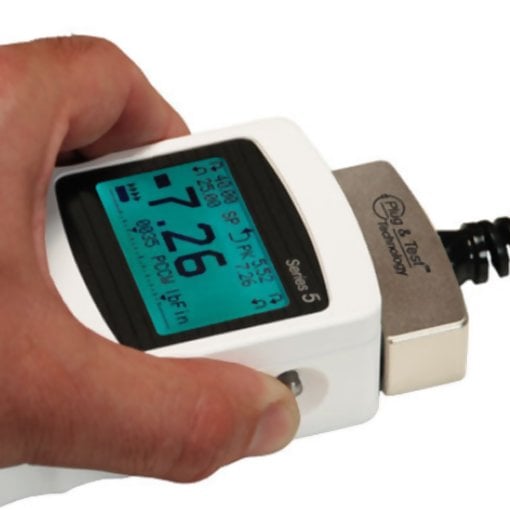

- Compatible with the 5i and 3i digital indicators
- Rugged aluminum housing
- NIST-traceable certificate of calibration included

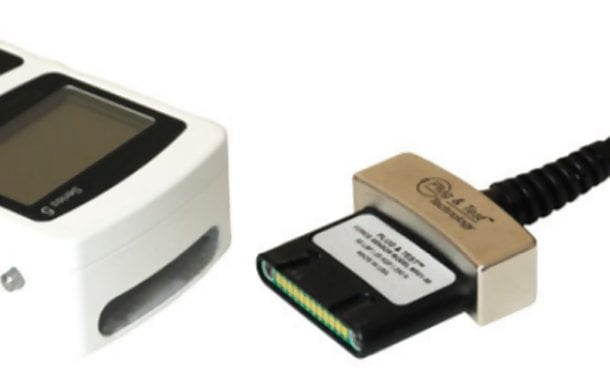

- Unique Plug & TestTM connector holds all calibration and configuration data
- Measures tensile and compressive forces
- Warranty: 3 years
Specifications
| Accuracy | 0.15% of full scale + indicator |
| Weight | 0.015 lbs (0.007 kg) |
Force Ranges
With Model 7i and 5i Indicators
| Model | lbF | ozF | kgF | N | kN |
| MR05-500 | 500 x 0.2 | 8000 x 5 | 250 x 0.1 | 2500 x 1 | 2.5 x 0.001 |
With Model 3i Indicator
| Model | lbF | kgF | N |
| MR05-500 | 500 x 0.5 | 250 x 0.2 | 2500 x 2 |
Related Products
Series-7i
Professional Force and Torque Indicator
- Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
Series-5i
Advanced Force/Torque Indicator
- 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
Series-3i
Force and Torque Indicator
- Interchangeable force and torque sensors through Plug & Testtechnology
- USB data output
Downloads
 | Mark-10 R05 Push / Pull Sensor - Data Sheet |
