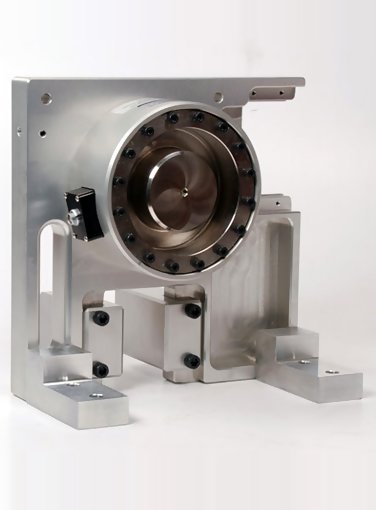

AWS 41013-HYRD-DP Test Stand, 5000 Lb-Ft / 6800 Nm, 1" F Dr, with Run-Down-Fixture and Display

---

Torque Tester for high range rotating torque wrench and torque multipliers

---

Capacities up to 25,000 lb-ft

---

The AWS TT-HYRD Series of torque testers are designed for precision testing of rotating and geared torque wrenches.

Commonly used for testing Ingersoll Rand, DeWalt, Milwaukee, Westward and many others makes.

Features

• Heavy Duty Construction
• Integrated reaction arm posts or slot as required

Specifications

Calibrated Range	10-100% Full Scale, bi-directional
Accuracy	0.5% of indicated (within calibrated range)
Overload Protection	200% Full Scale bi-directional
Warranty	1 Year
Calibration Certificate	Includes NIST Traceable calibration certificate with data
Operating Temp	32 - 120 F (0-50 C) Specifications below for Optional Display
Operating Modes	Track, Peak, 1st Peak
Resolution	4 Active Digits
Filtering	Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memory	data storage of up to 999 readings
Data Output	RS-232
Display	62 x 62mm backlit LCD
Alarm Limits	Panel Mounted LED for Visual Alarm Limits
