Digital Torque Gauges Models

The DI-12-4 Yield Digital Torque Tester is designed to find the actual yield tightening torque value for specific thread joints which consist of a variety of thread types, multi-layered material, hole sizes, etc. The yield value is the point at which the torque angle is no longer linear. Once the yield tightening torque value is found, one can easily determine the proper tightening torque value. DI-12 also captures the difficult-to-detect first peak dip in actual tightening torque of small screws. DI-12 provides a steady slow speed to capture the very small first peak dip and stops automatically to avoid over tightening. Torque data can be continuously output via RS-232 enabling you to display a torque profile showing, peak down, yield, and destructive strength torque using data acquisition software.

Please click on the links below for additional information on the models available for this product:

The DI-1M Digital Torque Tester is perfectly suited for on-the-spot calibration of impact drivers and air tools, but will calibrate any type of power driver. These fast response units give a digital readout of peak value in either clockwise or counterclockwise direction and also indicate the number of blows for a selected time period from 0.1 to 9.9 seconds. These instruments have an accuracy of 0.5%, 1 LSD and lbf-in/lbf-ft, kgf-cm/kgf-m, or N-cm/N-m units are selectable. RS-232 output, auto zero reset, auto shutoff and low battery indicator complete the set of features. It is powered by an internal NiCad battery or the included AC adapter.

Please click on the links below for additional information on the models available for this product:

The DI-3N Digital Torque Tester with Remote Sensor is used to calibrate torque tools up to 362 lb-ft. It has an accuracy of ±0.5% F.S., ± 1 LSD and measures torque in Peak, Real Time and Peak Down modes (selectable).

Please click on the links below for additional information on the models available for this product:

The new DI-4B-25 Digital Torque Tester is a fast response torque tester that is perfectly suited for on-the-spot calibration of air tools and impact drivers, but will calibrate any type of manual wrenches as well. This torque tester gives a digital readout of peak value in either direction and also indicate the number of blows for a selected time period.

Please click on the links below for additional information on the models available for this product:

The DIS-IP Digital Torque Tester with Remote Sensor is used to calibrate torque tools up to 362 lbf-ft. It has an accuracy of .5% F.S., 1 LSD. Select Peak, Real Time or Peak Down measurement modes. Programmable high/low setpoints enable GO/NO GO testing; green lights between high and low setpoints, and red for under low and over high setpoint. Use the 800 internal memory for peak data recall or USB downloadfor analysis by Imada data acquisition software SW-1SV-USB. Calibrateyour own torque wrenches and electric drivers and and save down time.

Please click on the links below for additional information on the models available for this product:

The ETP Torque Analyzer is a precision instrument that features a built in transducer for bi-directional test and calibration of torque wrenches. Can be mounted for horizontal or vertical operation. Robust aluminum housing with a detachable large LC graphic operating display. Detachable operating display slips into stand (included) and can be positioned or mounted so the operator easily reads the display.

Please click on the links below for additional information on the models available for this product:

The HTG2 Digital Torque Gauge is a precision instrument that offers programmable high/low set-points for go/no-go testing. ORANGE lights up for measurements less than Low set-point, GREEN for between High and Low set-point, and RED for over High set-point. Store up to 1,000 values in memory, which can be displayed or transmitted using serial output. Use the real time mode to display torque transients, or the peak mode to capture the peak torque achieved during a test. Selectable measuring units of lbf-in, kgf-cm, or N-cm.

Please click on the links below for additional information on the models available for this product:

The HYDP Hydraulic Torque Wrench Tester System is designed for precision testing of high range hydraulic, pneumatic and electric torque drivers up to 25,000 Lb-ft. Commonly used for testing Rad, Hytorc, Cleco, TorcUP and many other torque tool brands.

Please click on the links below for additional information on the models available for this product:

The versatile ILTT Inline Digital Torque Tester is used to convert any non-impacting torque tool into a complete torque measuring & analyzing system, simply connect the tester to the square drive, attach a socket and measure clockwise or counter-clockwise torque. Suitable for use with any hand tool or non-impacting power tool including torque wrenches, breaker bars, nut-runners and more. Internal NiMH rechargeable batteries provide 8-10 hours continuous use.

Please click on the links below for additional information on the models available for this product:

The new LTT Torque and Angle Analyzer is the next generation of torque analyzer. It offers EZ-Plug & Play with instant auto recognition with transducers. The LTT offers tool testing, graphing capabilities and a graphical menu for easy navigation. It includes three PC Windows based software programs: Torque Meter Interface Program - for sensor calibrations, meter calibration and tool tests, Torque Meter Bootloader - for updating the LTT operating systems and Statistics Calculator - for SPC, CP & CPK calculations.

Please click on the links below for additional information on the models available for this product:

The MTM Multi-Channel Digital Torque Tester is designed to provide an economical way to measure and calibrate multiple torque tools. It features such as independent CW and CCW calibration, multi-point linearization, metrology grade transducer shafts, and overload protection to 200% of full scale are standard. All of the above translate to a better product for you at an unbeatable price.

Please click on the links below for additional information on the models available for this product:

The MTS Dial Torque Analyzer is designed for quick and reliable torque testing on hand torque wrenches and drivers. Its Memory style master pointer retains maximum readings.

Please click on the links below for additional information on the models available for this product:

The NTS Rotating Torque Analyzer is a motorized rotating torque tester that measures rotating dynamic torque while turning the sample. Checkthe rotating torque, smoothness of rotation and components of small precision motors, such as, gearbox, bearings, oil seals, etc.

Please click on the links below for additional information on the models available for this product:

The new PTT Torque Analyzer is the next generation hand-held torque analyzer. It offers EZ-Plug & Play with instant auto recognition with transducers. The PTT offers tool testing, graphing capabilities and a graphical menu for easy navigation.It is supplied with NIST-Traceable Certification of Calibration.

Please click on the links below for additional information on the models available for this product:

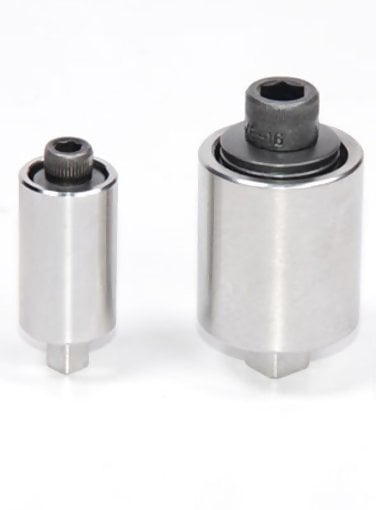

The RDF Joint Simulator is required for accurate torque measurement for power-driven torque controlled tools (electric, hydraulic or pneumatic). It simulates the conditions found when using the tool in real-world conditions, allowing the speed of the power tool motor to ramp-up to normal operating speeds resulting in a more accurate and repeatable measurement of the torque. It is typically fabricated from machined steel with the appropriate drive size as needed. Internally it is comprised of a series of Belleville washers, designed to compress as the bolt tightens. By varying the arrangement of these washers, various joint rates can be simulated soft, medium and hard.

Please click on the links below for additional information on the models available for this product:

The Series I Digital Torque Tester is ideal for calibrating electric screwdrivers with torque control. It features peak mode to capture the peak torque achieved during a test, real time mode to display torque transients, and peak down mode to capture critical first peak value. Standard 3/8" drive is good for checking torque wrenches but not impact wrenches. All digital torque testers are sold in kit form complete with tester, hard carrying case, 2 smart driver adapters and AC charger/adapter. A calibration kit is also available.

Please click on the links below for additional information on the models available for this product:

The STA Hand Tool Torque Tester is a simple yet accurate solution for testing hand operated torque screwdrivers, wrenches, and other tools. Applications exist in manufacturing facilities in virtually every industry. The STA features a solid aluminum housing, making it rugged enough for many years of service in production or laboratory use, while auniversal receptacle with square drive and grooves accepts common bits and attachments. The STA captures peak torque in both clockwise and counterclockwise directions.

Please click on the links below for additional information on the models available for this product:

The TCM Bottle Cap Torque Analyzer is used to measure twist-off and twist-on force. It is an ideal tester for bottlers, food and beverage companies, and others who need to measure closure torque. The versatile clamping jaws securely hold a multitude of shapes and sizes within its adjustable grips. This closure torque analyzer captures peak torque in both clockwise and counterclockwise directions for application and removal measurements.

Please click on the links below for additional information on the models available for this product:

The new TORQ-T Digital Torque Tool Testers is a simple yet accurate solution for testing torque screwdrivers, wrenches, and non-motorized torque tools. Applications exist in manufacturing facilities in virtually every industry. It features a solid aluminum housing, making it rugged enough for many years of service in production or laboratory use, while a universal receptacle with square drive and grooves accepts common bits and attachments. The TORQ-T captures peak torque in both clockwise and counterclockwise directions.

Please click on the links below for additional information on the models available for this product:

The TST Torque Measurement Test Stand is ideal for a wide variety of torque testing applications up to 100 lbin, including closure torque testing, fastener torque testing, and more. Its versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures. Ultra-smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator.

Please click on the links below for additional information on the models available for this product:

The TSTM Motorized Torque Test Stand is ideal for a wide variety of torque testing applications up to 100 lb-in, including closure torque testing, fastener torque testing, and more. Motorized clockwise and counterclockwise rotation allows for highly precise and repeatable tests. Versatile modular design allows the stand to be configured for a variety of torque sensors and gripping fixtures while a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator.

Please click on the links below for additional information on the models available for this product:

The TT-3000 Series Digital Torque Tester is designed specifically for the needs of todays production facilities. These powerful and versatile systems accommodate most testing requirements at an outstanding cost benefit. perfect for testing click, dial, and digital wrenches, plus most power tools including impulse, DC electric and pneumatic.

Please click on the links below for additional information on the models available for this product:

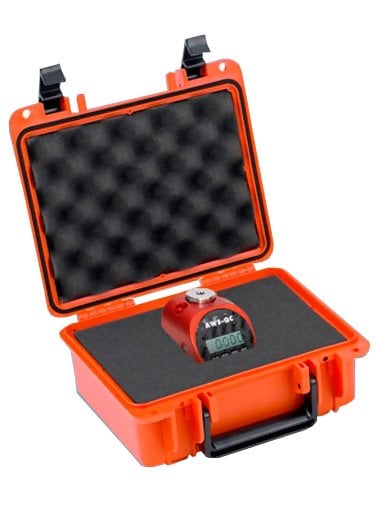

The TT-QC Digital Torque Tester is a simple bench mount digital torque tester for quick tool verification. It is perfect for quick equipment verification right at your workstation. Small and light enough to use anywhere, this unit can still be used alongside any metrology grade tester.

Please click on the links below for additional information on the models available for this product:

The Wizard Plus PDA Torque & Force Analyzer is a CF2 Card that plugs into a Pocket PC or Laptop/PC. The Wizard Plus comes with a CF2 to PCMCIA Adapter. A Pocket PC and Laptop are not included and must be purchased separately. It can be used for torque calibration, joint testing, auditing or for force and load measurement or verification.
