Mark-10 TSTH Manual Torque Test Stand - Horizontal



Price: $ 2,470.00

Mark-10 TST Manual Torque Test Stand
Manual Torque Test Stand

Convenient side-mounted hand wheel

Modular Design

The Mark-10 TST Torque Measurement Test Stand is ideal for a wide variety of torque testing applications up to 100 lbin, including closure torque testing, fastener torque testing, and more. The TST's versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures. Ultra-smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator.

line
Features
line

  • Angle dial with 2 resolution
  • Torque plate with tapped holes for grip and fixture mounting
  • Lever operated slider for engaging and disengaging samples
  • Adjustable travel stops
  • Smooth hand wheel operation

line
Specifications
line

Maximum Torque100 lbin (11.3 Nm)
Maximum Angular TravelNo limit
Maximum Slider Travel15.5" (394 mm)
Throat4.10" (104 mm)
Angular Rate12/ wheel rev.
Slider Travel Rate1.047" (26.6 mm)/lever rev


line

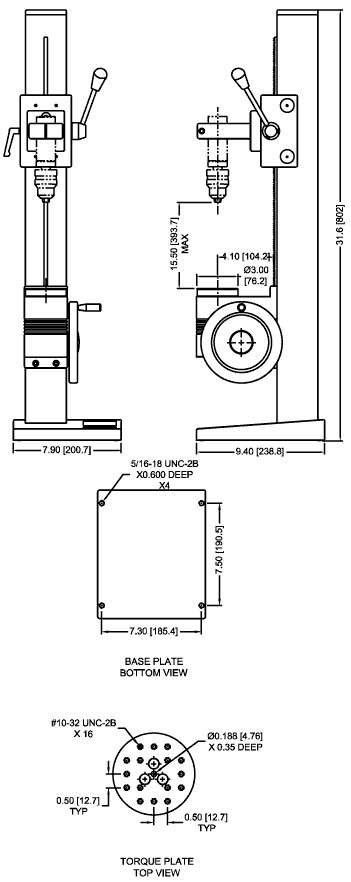

Dimensions
line

dimensions

line
Related Products
line

BGI
Remote Sensor Force / Torque Gauge

  • Fully interchangeable force and torque BGI force/torque sensors with "personality" modules
  • Unlimited number of sensors possible due to unique design
  • RS-232, Mitutoyo and analog outputs
related

line

TST001
Digital Angle Indicator

  • Displays cw or ccw angle in .01 resolution
  • Accurate to 0.7
related

line

STJ
Universal Torque Sensor

  • Measures bi-directional torque
related

line

G1053
Cap Grip

related

line

G1023
Bottle / Round Sample Grip

related

line

G1022
Jacobs Chuck Grips For TSTM
related

lineBuy Nowline


Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Mark-10 TSTH Manual Torque Test Stand - Horizontal $2,470.00
Accessories Price
TSF002 Horiz. / wall mounting kit for TSF Series and TST Series stands $200.00
TST001 Digital angle indicator for TST-Series stands $950.00
